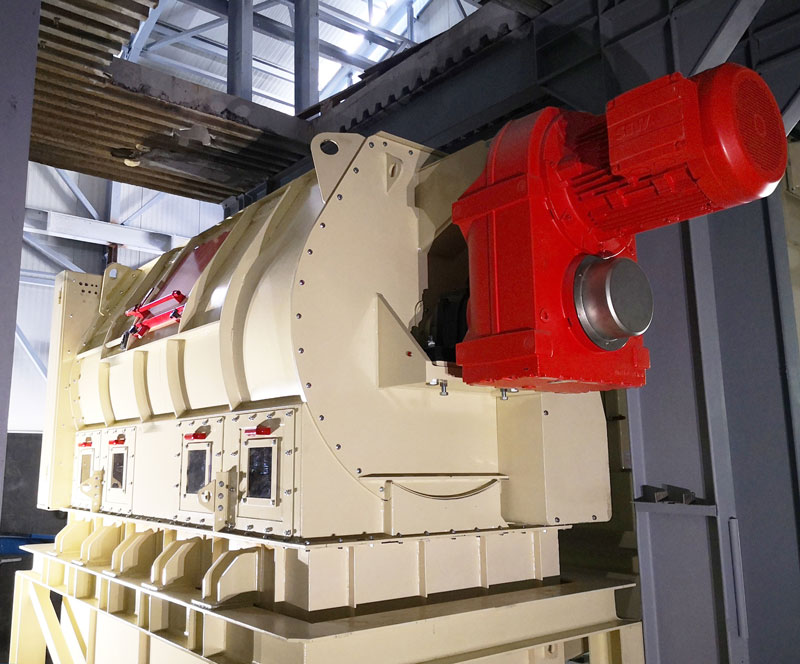

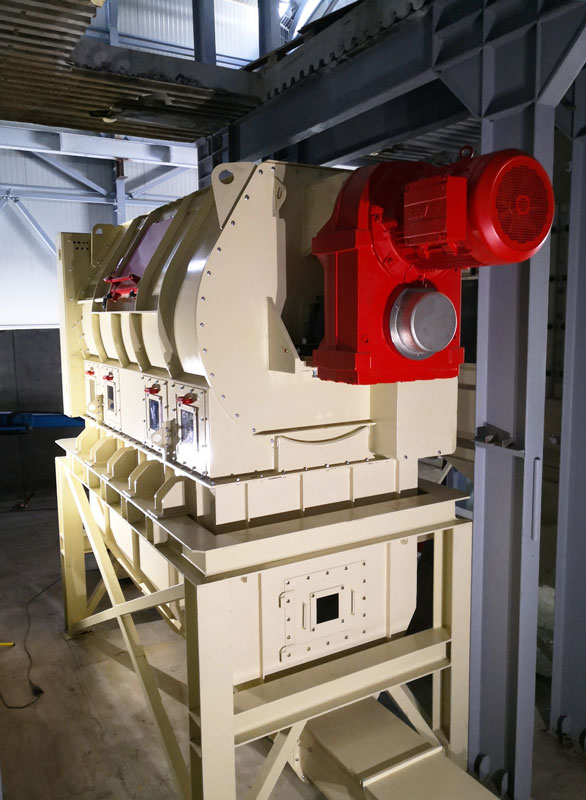

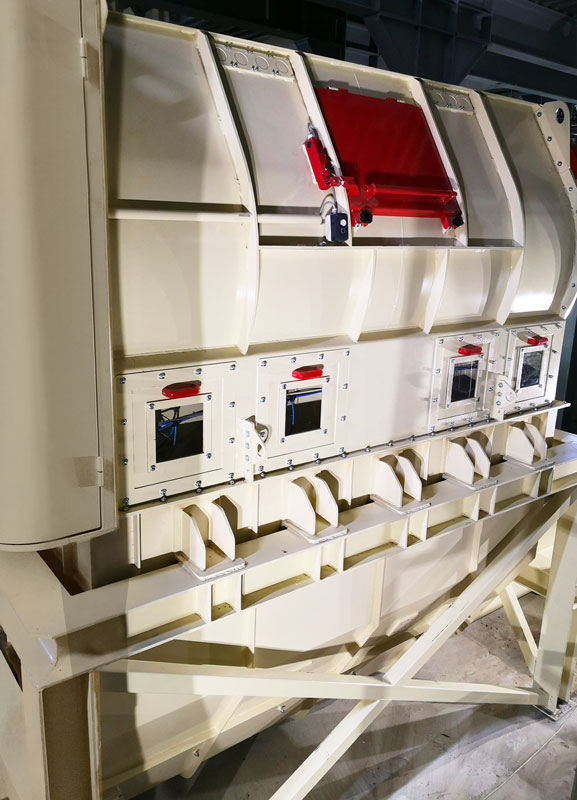

Single Shaft Paddle Mixers

The single‐shaft paddle mixer was developed for the below applications: mixing/stirring dry, solid mealy products; mixing liquid in bulk solid products (maximum 8% liquid); mixing micro‐components into dry, solid products; coating pellets/kibbles or crumbs with liquids.

– Teardrop shaped mixer trough
– Robust, settling‐free shaft with adjustable mixing paddles
– Dynamically balanced rotor
– Gear motor mounted directly on the rotor shaft
– Bomb door operated by pneumatic cylinders for opening the entire bottom of the machine
– It is simple to replace all spare parts
– Very high (5% CV @ 10 ppm) homogeneity in short mixing time
– Entire bottom discharge
– Low maintenance
